Sightmark Διόπτρα Citadel 3-18X50 MR2 (SM13039MR2)

Sightmark Διόπτρα Citadel 3-18X50 MR2 (SM13039MR2)

• 6:1 zoom ratio

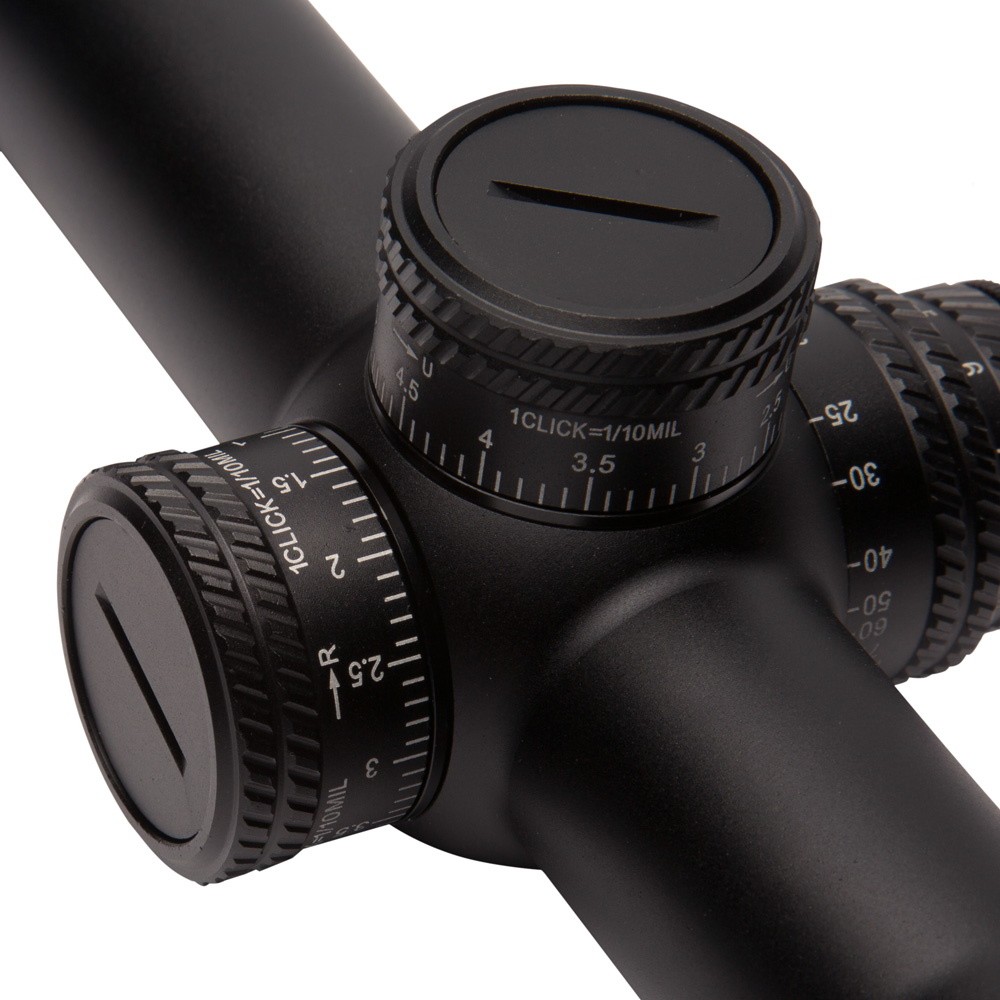

• Exposed low profile locking turrets
• First focal plane reticle
• Red illuminated reticle
• Single-piece 30mm tube
• Aircraft grade aluminum
• Hard anodized finish
• Shockproof / fogproof / waterproof
• Fully multi-coated optics

Product Specifications

Product Specifications

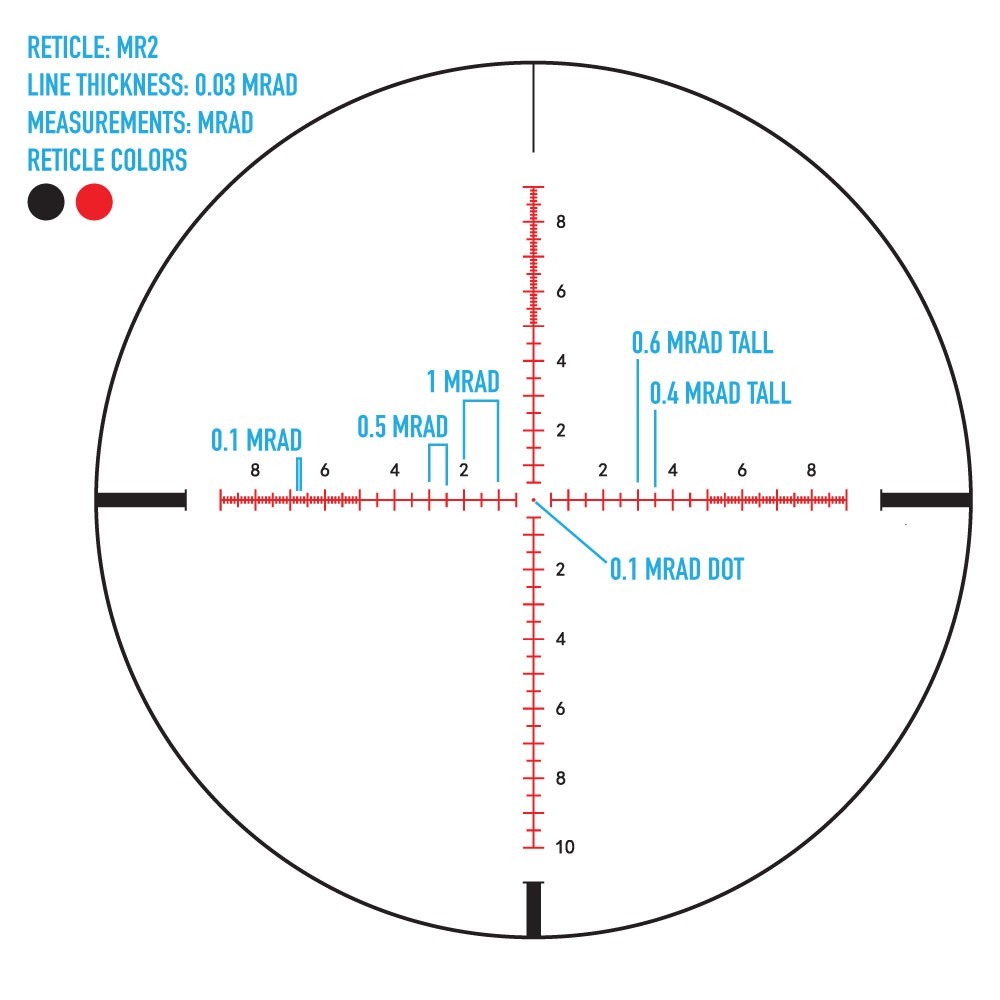

Reticle, Type MR2 (MIL)
Reticle, Color Red
Reticle, Illuminated Yes
Reticle Etched Glass
Finish/Color Matte black
Reticle Brightness Setting 0 – 11
Magnification 3-18 x
Diameter, Objective Lens 50 mm
Diameter, Eyepiece 1.6 / 40 in / mm
Diameter, Exit Pupil 7.4 – 2.7 mm
Field of view, m@100m 11 – 1.9
Field of view, ft@100yd 33 – 5.8
Diopter Adjustment +2 to – 2
Eye relief (in/mm) 4.6 – 3.7 / 116.8 – 94
Parallax Setting 30 / 1.18 mm / in
Diameter, Tube 15 – ∞
Mil adjustment (one click =) .1 MIL
Windage adjustment range (MIL) 17
Elevation adjustment range (MIL) 17
Windage & Elevation, Lock Yes
Maximum Recoil .338
Battery Type CR2032
Battery Life 70 – 100 hours
Shockproof Yes
Fog Proof Yes
Battery Voltage, V 3
Sunshade Yes
Nitrogen Filled Yes
Body Material Aluminum
Focal Plane Fully multi-coated
IP Standard IP67 – waterproof and dustproof
Weight, oz 26.1
Operating Temp,?F/?C 0 to 120 / -17 to 49
Length (in/mm) 13 / 330
Width (in/mm) 3.1 / 79
Height (in/mm) 2.2 / 56
Lens Coating Fully multi-coated
Tube dimensions (in/mm) 1.18 / 30
